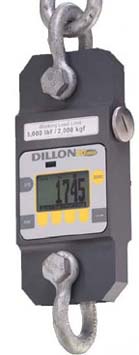

Dynamometers main     EDJunior Features
PDF Downloads:
Specifications     Price List     Brochure


Enclosure: Designed to NEMA4X/IP55.
Suitable for continuous outdoor use.

Accuracy: 0.2% of capacity.

Repeatability: 0.2% of capacity.

Ultimate overload: 700%

Safe overload: 200%

Display: 128 x 64 dot-graphic LCD display shows all digits 1.0“ (26 mm) high plus annunciators and softkeys.

Display update rate: 2 times per second.

Peak hold sampling rate: 2 times per second typical.

RS-232 communication: Not available. See Dillon EDxtreme.

Calibration: Traceable to the National Institute of Standards and Technology. Calibration card included.

Battery life: 320 hours typical use with two C-cell alkaline batteries.

Operating temperature: -4° F to 140° F (-20° to 60° C)

Included with instrument: Batteries, manual and calibration card.

Optional accessories: Carry case.
