EDxtreme Crane Scale Specifications

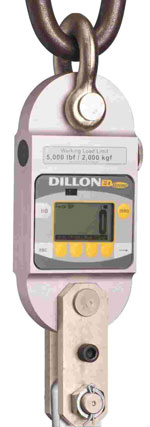

EDxtreme Crane Scale Photo
  • An accuracy of 0.1% of full scale capacity.
  • Resolution of 1 part in 5000 to ensure the level of readability.
  • Control Interface of Dillon SOFTKEY interface.
  • Local gravity correction.
  • Custom units of measure .
  • Wide-angle LCD.
  • Battery operation - Powered by two standard C-cell batteries.
  • Conducted exhaustive materials testing to achieve the highest structural integrity.
  • Superior strength and corrosion resistance.
  • 5:1 factor of safety - This measure of strength and safety is maintained at all capacities.
  • NEMA 4X/IP55 - The EDx Crane Scale is clearly the choice for reliability in any environment - in-plant or out on the job site.
2.4 Ghz radio option EDxtreme Crane Scales - Expandable Scale Network
  • Powerful technology that dramatically improves communication when compared to the single frequency products on the market today.
  • Expandable Scale Network.
Different hook choices
  • Non-Swivel Hook (left), Basic Swivel Hook (center) and Bearing Swivel Hook(right).

  •     EDxtreme Crane Scales - Non-Swivel Hook  EDxtreme Crane Scales - Basic Swivel Hook  EDxtreme Crane Scales - Bearing Swivel Hook
