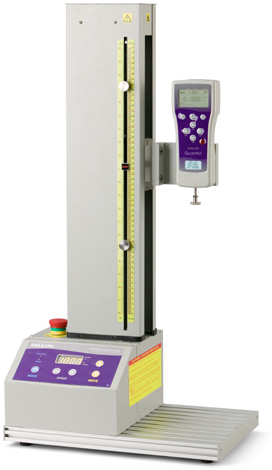

Model GTS-1000
The Dillon GTS-1000 is a ball-screw driven digital
test frame with impressive abilities. The dimensions,
speed range and capacity have been carefully
optimized to cover the test procedures and specimen
sizes most often needed by quality departments
within R&D and production industry.
The digital controls produce accurate testing speed
and intuitive operation. The large slotted workspace
secures awkward samples and fixturing.
Two test modes increase productivity and enhanced
stand control is available with the GTX force gauge.
Dillon offers a wide assortment of gauges, grips,
accessories and software for a system that meets
your needs at the best price.
| Capacity |
1000 N
220 lbf
100 kgf |
750 N
165 lbf
75 kgf |
500 N
110 lbf
50 kgf |
| Throat opening |
2.6 inch
67 mm |
3.8 inch
97 mm |
5.0 inch
127 mm |
Specifications
Speed: 0.2 – 40 in/min / 5 – 1000 mm/min
Speed accuracy: +4% of indicated speed
Mount holes: Two 2.25 in / 57 mm vertically spaced
Travel: 18.7 inch / 475 mm
Warranty: 2 year parts and labor
Weight: 54 lb / 25 kg
