Mecmesin Motorized Test Stands
MultiTest 1 Motorized Stand

MultiTest 1 Motorized Test Stand
1000N/100kg/220lb

  • Max daylight 23.2 inch
  • Crosshead speed range 0.1 to 39.4 in/min (2.5 to 1000 mm/min)
  • Single cycle test mode with full-speed return
  • Auto-travel reverse on alarm point or sample break
  • Pre-setable upper & lower travel limits
  • Indication of crosshead speed and direction of travel
  • CE marked

Download the:
MultiTest Brochure
Price List


Top

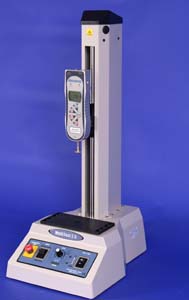

MultiTest 2.5 Motorized Teststand

MultiTest 2.5 Motorized Test Stand
2500N/250kg/550lb

  • Manual or single cycle modes
  • Speed range 0.1 to 29.5 in/min (2.5 to 750 mm/min)
  • Speed accuracy ±5% of indicated speed
  • Crosshead travel 13.0 inch
  • Daylight 16.1 inch
  • Tension & compression



Download the:
MultiTest Brochure
Price List

Top
Test Stand Links
Dillon CT Stand Dillon GTS-1000 Mecmesin Test Stands MDD Test Stand LCP Test Stand Mecmesin MultiTest Mecmesin MultTest-x Mecmesin MultiTest-i
