Mecmesin Hand Operated Test Stands
LCP Photo

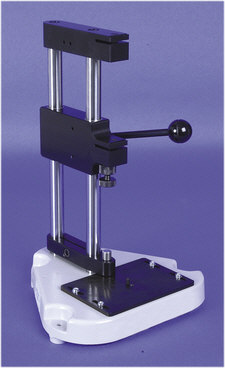

LCP Lever Operated Test Stand
500N/50kg/110lb

  • Effective travel, daylight opening: (With gauge, without fixtures and grips) 6.0 in (152 mm)
  • Linear travel per revolution: 1.87 in (47.5 mm)
  • Maximum movement of fine adjuster: 0.3 in (8 mm)
  • Maximum movement of adjustable stop: 6.0 in (152 mm)
  • Weight: 10 lb (4.5 kg)
  • Maximum load using extended instrument bracket: 40 lb - 20 kg - 200 N

Download the:
LCP Brochure
LCP Price List


MDD Photo

MDD Handwheel Operated Test Stand
1000N/100kg/220lb

  • Maximum daylight and travel 345mm (13.6in)
  • 2mm (0.08in) travel per handle revolution
  • Manually operated
  • Optional horizontal operation
  • Optional digital height scale
  • Tension & compression



Download the:
MDD Manual Direct Drive Test Stand Brochure
MDD Manual Direct Drive Test Stand Price List
